Contact Us on TelegramPRO GCM 12 SDE

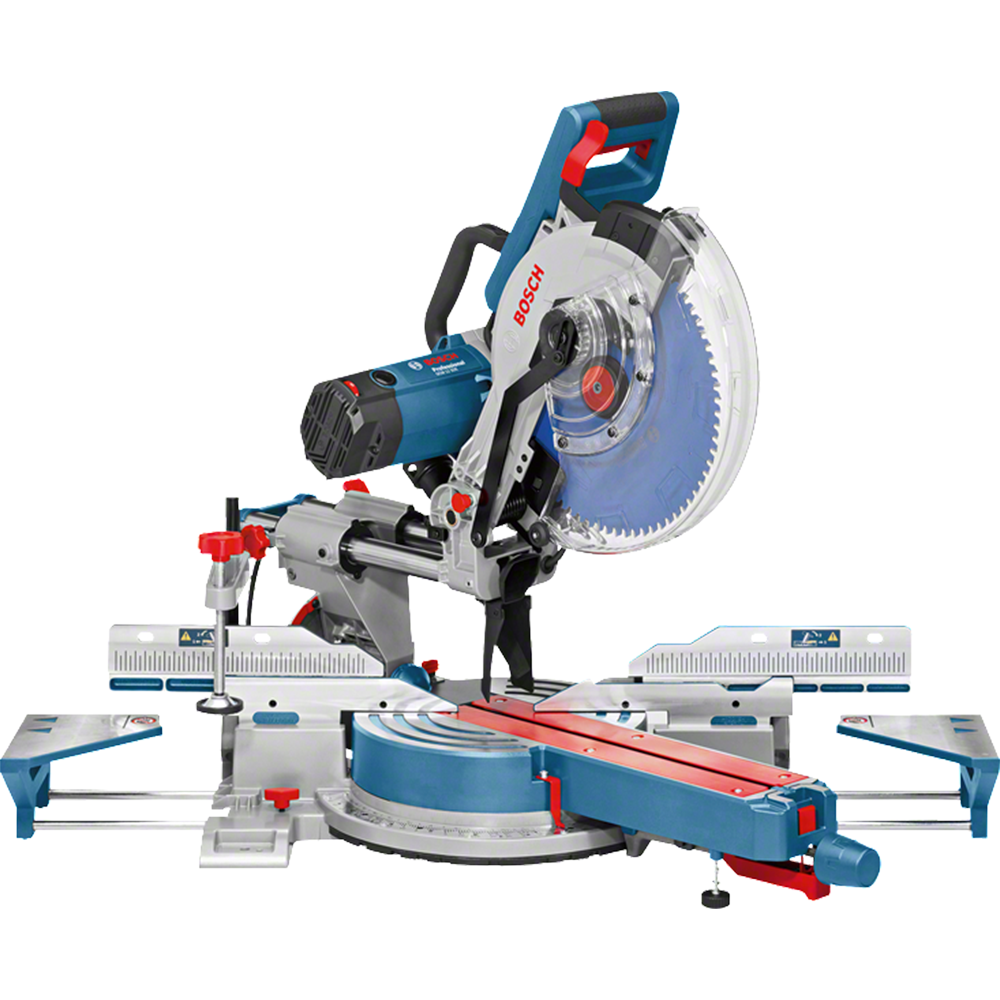

Sliding Mitre Saw
Order number 0.601.B23.100
Extremely high cutting capacity 120 mm vertical and 400 mm horizontal enables cuts in very large workpieces
Variable cutting speed ensures high versatility in various materials
Fast, tool-free saw blade change ensures easy and convenient handling
| Rated input power | 1,800 W |
| Saw blade diameter | 305 mm |
| Mitre setting | 52 ° L / 60 ° R |
| Bevel setting | 47 ° L / 47 ° R |
| Saw blade bore diameter | 30 mm |
| Cutting capacity, 0° | 85 x 370 mm |
| Cutting capacity 0° with spacer (max. vertical) | 120 x 200 mm |
| Cutting capacity 0° with spacer (max. horizontal) | 70 x 400 mm |
| Cutting capacity, 45° mitre | 85 x 250 mm |
| Cutting capacity, 45° bevel | 60 x 360 mm |
| No-load speed | 3,100 – 4,000 rpm |
| Weight | 28.6 kg |
| Tool dimensions (width x length x height) | 600 x860 x530 mm |
No documents available.
