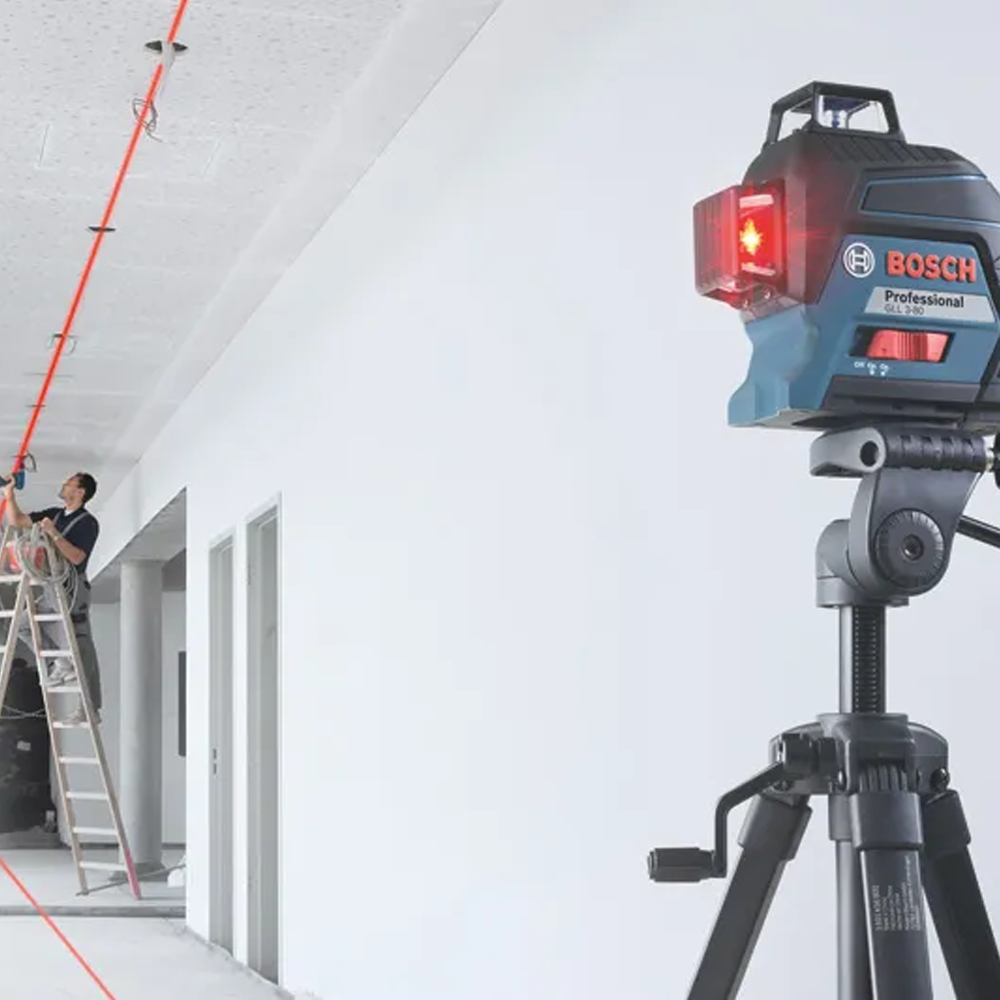

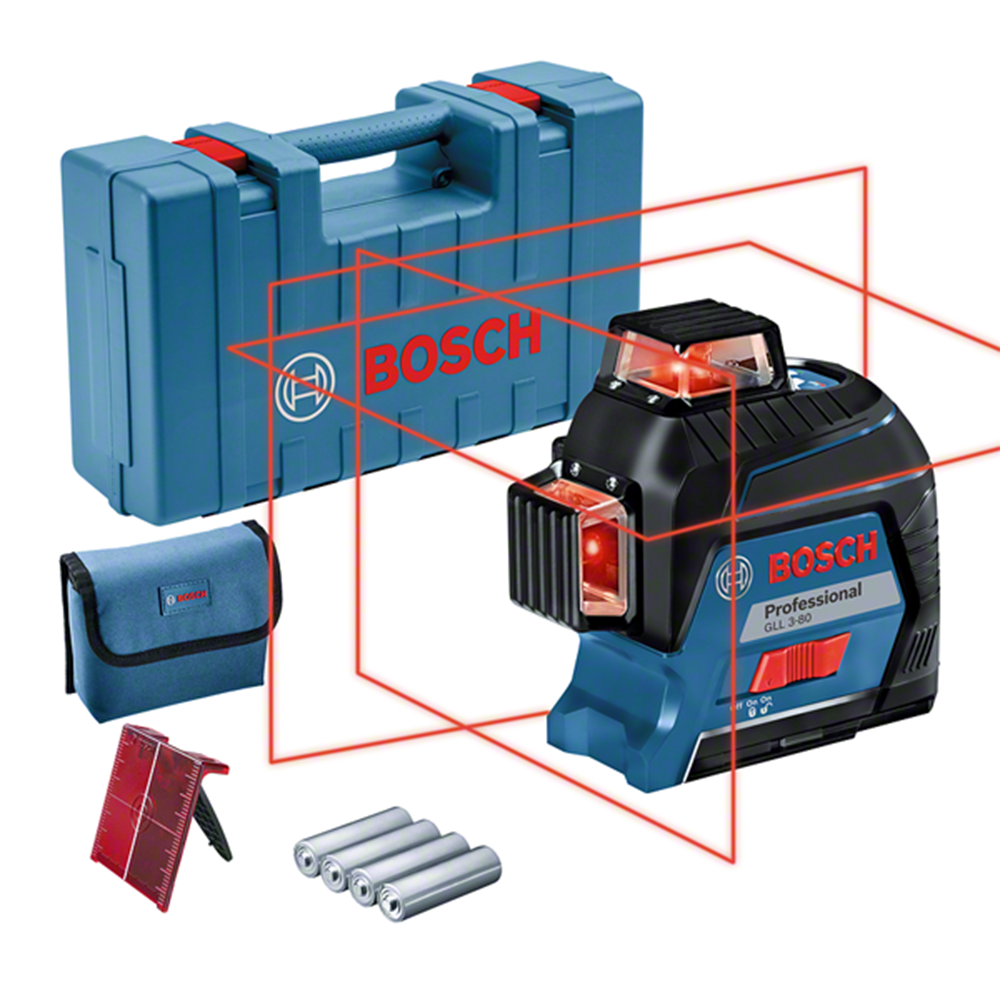

Contact Us on TelegramPRO GLL 3-80
Line Laser
Order number 0.601.063.S00
High visual clarity is provided by high-powered diodes

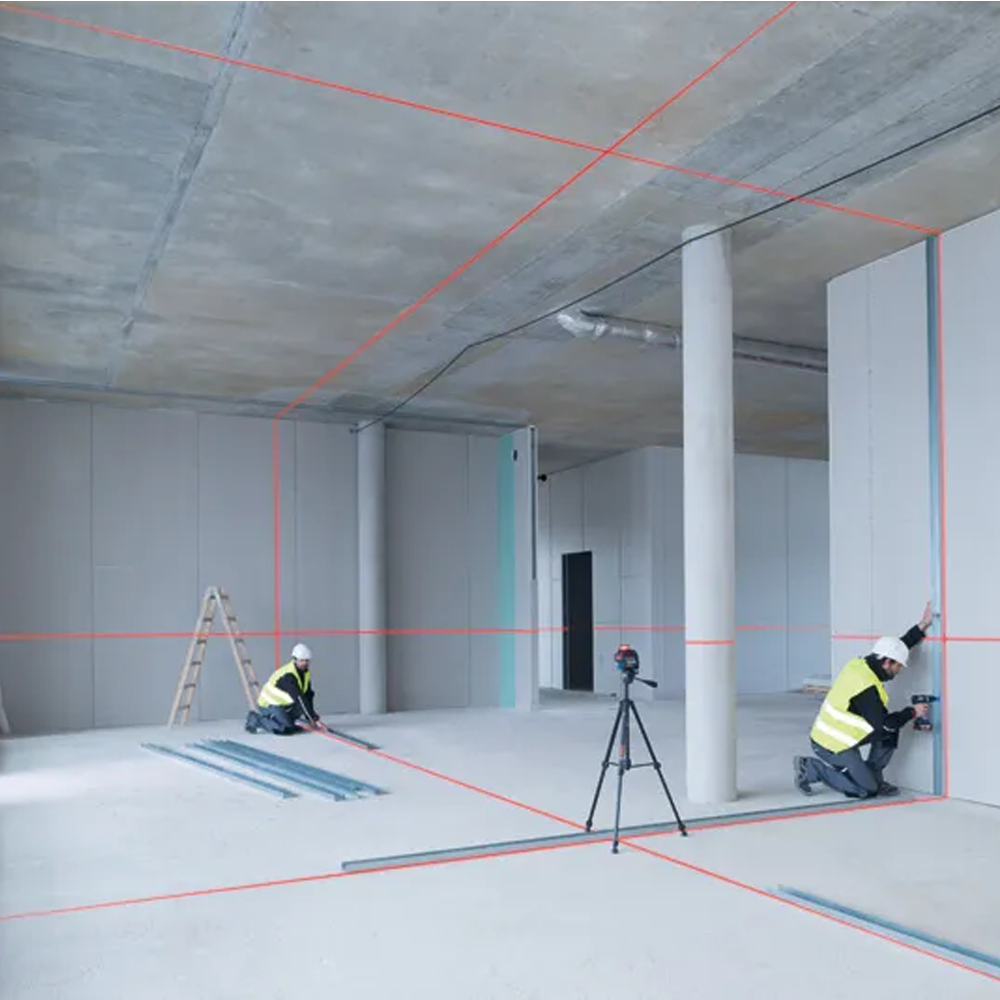

3 x 360° lines allow for simultaneous horizontal and vertical levelling applications for highly efficient work
Intuitive user interface offers easy operation
| Working range with receiver, value | 120 m |
| Dust and splash protection | IP 54 |
| Working range, value | 30 m |
| Laser diode Line | 630 – 650 nm, < 10mW |
| Operating temperature | -10 – 40 °C |
| Storage temperature | -20 – 70 °C |
| Laser class | 2 |
| Working range | up to 30 m |
| Working range with receiver | up to 120 m |
| Accuracy | ± 0.3 mm/mᵃ/** |
| Self-levelling range | ± 4° |
| Levelling time | 4 s |
| Power supply | 4 x 1.5 V LR6 (AA) |
| Operating time (max.) | 4 h in 3-line mode |
| Tripod thread | 1/4″, 5/8″ |
| Weight, approx. | 0.82 kg |
| Colour of laser line | red |
| Projection | 3 x 360° line |
| Compatible laser receivers | LR 6 + 7 |
